AKG HUB4000 Q HIQNET Ethernet Interface

AKG HUB4000 Q HIQNET Ethernet Interface
$999.00
In stock
SKU 2999H00150
Make the connection supports DMS700,WMS4000/4500 and IVM4/4500 The HUB4000 Q reference HiQnet® ethernet interface allows you to connect up to eight AKG wireless devices to a HiQnet network. HUB4000 Q connects to the network via a standard CAT-5 cable. For large wireless systems,several HUB 4000 Qs can be cascaded using commercial Ethernet switches (or routers,wireless hubs,etc.),allowing you to configure and monitor complex systems from a single application. HUB4000 Q connects the wireless system to the applications Harman System Architect™,AKG Wireless app and VM2.

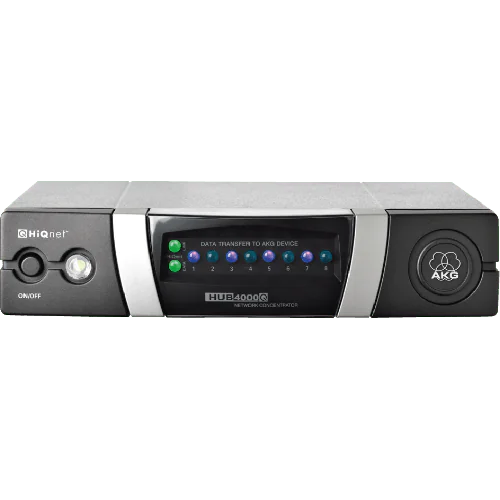

The HUB4000 Q comes in a rugged half-rack metal housing and provides 10 LEDs with information on the data transfer status as well as 4 DIP switches to set up the IP address.

Connects up to 8 wireless devices to HiQnet® network
enables remote control via System ArchitectTM,AKG Wireless app and VM2

Cascadable via standard ethernet switches
for easy setup of large system configurations

Central 10 LED operating display
for full control on data transfer status

Covered DIP switches on front panel
for quick and safe setup of the IP address

Rugged half-rack metal housing
for flexible,space efficient system configurations


Technical Specification
Data Interface 1
Amount 8
Type RJ 10 data (4P4C)
Gender Female
Contacts 4-pin
Note for connection with AKG Wireless devices such as SR4500,SST4500,DSR700
Data Interface 2
Amount 1
Type RJ 45 Ethernet
Gender Female
Note for connection with HiQnet ethernet network
Powering Interface
Internal Power Supply no
Type Lockable DC Socket
Voltage 12 to 12 V
Design
Body Metall
Finish matte black
Dimensions / Weight
Length 136 mm
Height 440 mm
Width 200 mm
Net Weight 970 g
More Information
ConditionNew
★★★★★
★★★★★
