AKG GN30 E 5-Pin High Performance Modular Gooseneck Module

AKG GN30 E 5-Pin High Performance Modular Gooseneck Module
$254.41
In stock
SKU 2765H00400
Proven reliability for use in houses of worship,conference rooms and theatres The GN E 5Pin high-performance gooseneck modules for fixed and mobile installation provide a five-pin XLR connector that allows the audio signal and the control voltage for the LED ring to be fed separately. Thus,the LED ring can be activated remotely by,for example,a logic output from any automatic mixer. The LED ring is extra-large for enhanced visibility.

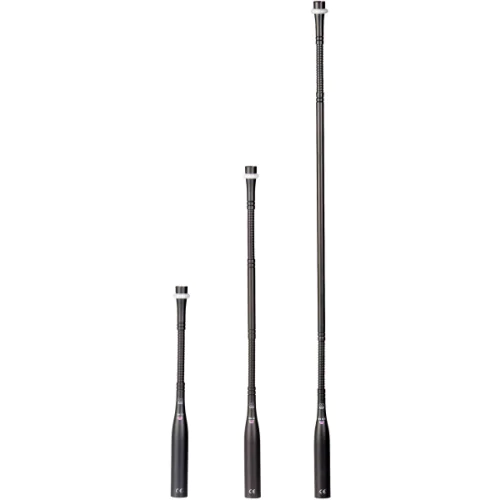

The DAM Series GN E five-pin gooseneck modules are available in three different lengths: 15cm (6in),30cm (12in) and 50cm (20in). The gooseneck module fits all DAM Series capsules,CK31,CK32,CK33,CK47 and CK80,via highly reliable contacts.

Gooseneck with 5-pin XLR connector module
for remote control of integrated LED ring

Extra-large LED ring indicator
provides enhanced visible MIC ON

Switchable bass rolloff

Extremely rugged gooseneck construction

Highly reliable contacts for capsule modules


Technical Specification
General
Audio Frequency bandwidth 20 to 20000 Hz
Recommended Load Impedance 6000 Ohms
Powering Interface
Voltage 9 to 52 V
Current 3 mA
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Design
Finish matte dark gray
Dimensions / Weight
Height 1490 mm
Diameter 20 mm
More Information
ConditionNew
★★★★★
★★★★★
