AKG Floorpad Passive Directional Near Field Antenna

AKG Floorpad Passive Directional Near Field Antenna
$525.00
In stock
SKU 3009H00220

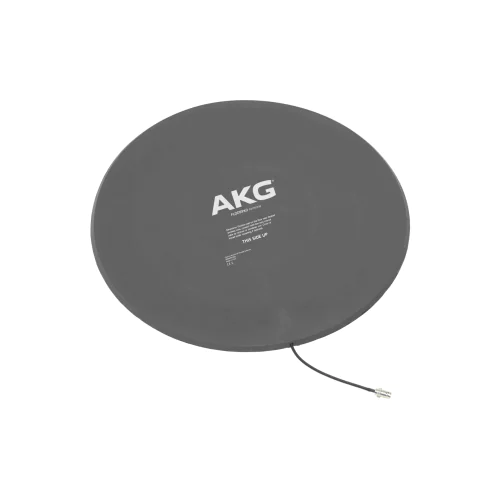

stick around for lecture spaces,worship sanctuaries and other close range applications The FLOORPAD is a passive directional near field UHF antenna designed for close range applications in highly congested RF environments. It can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470 to 740 MHz and provides a covering area of about 12 m/37 ft. Its negative antenna gain of 1dB provides optimal quality for the wanted signal while decreasing unwanted signals outside its range.

The FLOORPAD is designed to meet the rigorous demands of touring and rental companies. The tough,PVC molded pad can withstand the weight of a forklift and is not adversely affected if stood on during use. Its coaxial tail connector is pull tested to 50 lbs.

Near field antenna
decreases unwanted signals in highly congested radio environments

Works as transmitting and receiving antenna
for wireless microphones and in-ear monitoring

Operates in a wide frequency range
470 to 740 MHz for universal use worldwide

19" diameter,1/4" thick tough PVC floor pad
for easy hiding under carpeting,podiums or stages

Water-resistant construction
for indoor and outdoor use


Technical Specification
General
Switching bandwidth (from/to) 470 to 740 MHz
Antenna Gain -1 dBi
Covering Angle 180 Grad
Antenna Output
Amount 1
Type BNC
Gender Female
Recommended Load Impedance 50 Ohms
Design
Body flexible plastic
Finish stage gray
Dimensions / Weight
Length 483 mm
Height 7 mm
Net Weight 1500 g
More Information
ConditionNew
★★★★★
★★★★★
